300W Pure Sine Wave Power Inverter

sine wave
power inverter
DC-AC
home appliance
Product description: Digital microprocessor design. Short circuit alarm and protection Overload alarm and protection Reverse polarity protection Intelligent over temperature alarm and shutdown High and low battery v
INQUIRY

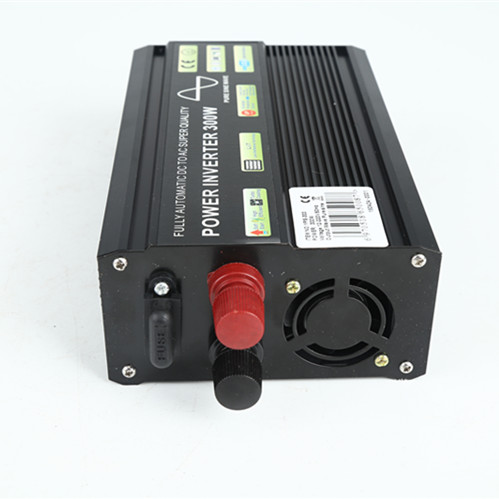

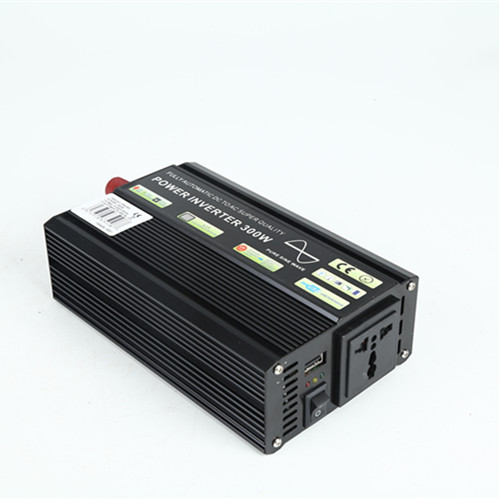

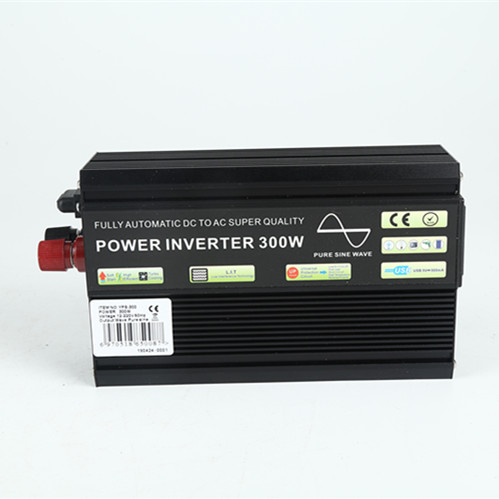

YPS-300 Pure Sine Wave Power Inverter

Product Description

Product Name: 300W Pure Sine Wave Power Inverter

Country of Origin:China

Model: YPS-300

Color: Silver

Continue Power: 300 W
Max. Output Surge: 600 W
DC Input Voltage: 12V or 24V or 36v or 48V
AC Output Voltage: 110V or 120V or 220V or 230V or 240V
Dimensions (mm): (180+25) x 112 x 58
Weight (kg): 1.25 kg

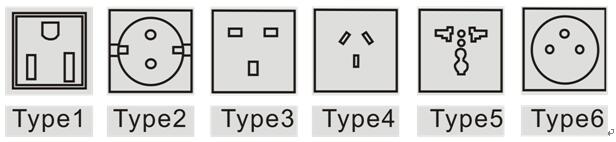

‧Output type:

‧Features :

Digital microprocessor design.
Short circuit alarm and protection
Overload alarm and protection
Reverse polarity protection
Intelligent over temperature alarm and shutdown
High and low battery voltage alarm and shutdown
Intelligent disperses heat system
High surge capacity for starting demanding loads
Stable output voltage and frequency
Low no load current draw
Advanced SMT technology
Pure Sine Wave Output

‧Scope of Application :

Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.

‧YPS-300 Specifications:

Model			YPS-300-12	YPS-300-24	YPS-300-36	YPS-300-48
Output	Continuous output		300W
	Surge Power		600W
	AC Voltage		100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
	Regulation		Vrms ±3%
	Frequency		50Hz or 60Hz
	Wave Form		Pure Sine Wave
	Total Harmonic Distortion		THD ＜ 3%
Input	Battery Voltage		12V	24V	36V	48V
	DC Current (typ.)		30A	15A	10A	7.5A
	LowBatteryAlarm		10.5V ± 2%	21V ± 2%	31.5V ± 2%	42V ± 2%
	Battery Voltage Selected		10V±2%	20V± 2%	30V±2%	40V ±2%
	HighBattery		16V ± 2%	32V ± 2%	48V ± 2%	64V ± 2%
	No load current		400mA	250mA	130mA	100mA
	Efficiency		87%
Protection	High temperature		Yes
	Short-circuit		Yes
	Overload		Yes
	Input Voltage		Yes
Intelligent Design Heat Auto Control			Fan Start : 42℃ ± 3 , Fan Stop : 38℃± 3
			High Temperature Shut Down : 70℃±3 , Restart Output : 55℃±3
Mechanical		Dimensions (mm)	180+25(D) x 112 (W) x 58 (H)
		Weight	1.25KG
