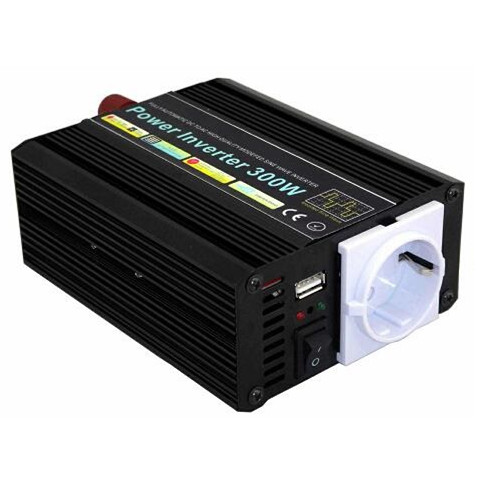

300W Modified Sine Wave Power Inverter

modified wave
power inverter
DC-AC
home appliance
Product description: Digital microprocessor design Short circuit alarm and protection Overload alarm and protection Reverse polarity protection Intelligent over temperature alarm and shutdown High and low battery vo
INQUIRY

YPM-300 Modified Sine Wave Power Inverter

Product Description

Product Name: 300W Modified Sine Wave Power Inverter

Model: YPM-300

Color: Black / Silver

Continue Power: 300 W
Max. Output Surge: 600 W
DC Input Voltage: 12V or 24V
AC Output Voltage: 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V to be selected
Dimensions (mm): (137+25) x 112 x 58
Weight (kg): 0.95 kg

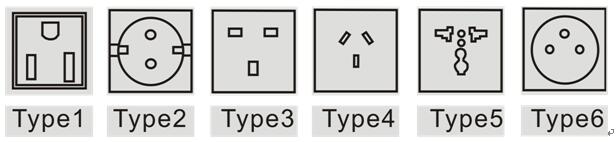

‧Output Receptacles:

‧Features :

l Digital microprocessor design

l Short circuit alarm and protection

l Overload alarm and protection

l Reverse polarity protection

l Intelligent over temperature alarm and shutdown

l High and low battery voltage alarm and shutdown

l Intelligent disperses heat system

l High surge capacity for starting demanding loads

l Stable output voltage and frequency

l Low no load current draw

l Advanced SMT technology

l Modified Sine Wave output

‧Scope of Application :

Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.

‧YPM-300 Specifications:
Model		YPM-300-12	YPM-300-24
Output	Continuous output	300W
	Surge Power	600W
	Voltage	100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V to be selected
	Regulation	Vrms ± 8%
	Frequency	50 Hz or 60Hz ± 1Hz
	Wave Form	Modified Sine Wave
	USB Output	DC 5V ± 5% 500mA
Input	Voltage	12V	24V
	LowBattery	10V ± 0.3V Shutdown	20V ± 0.6V Shutdown
	HighBattery	Over 16V alarm sounds and shutdown	Over 32V alarm sounds and shutdown
	No load current (A)	0.5 amp
	Efficiency	Over 85%
Protection	High temperature	＞65℃ shutdown
	Short-circuit	Yes
	Overload	Yes
Indicator	Audio Sound	bi—(low battery)
	Visual	LED Red Light : Inverter is ON
Mechanical	Dimensions (mm)	(137+25)11258
	Weight	0.95 kg
