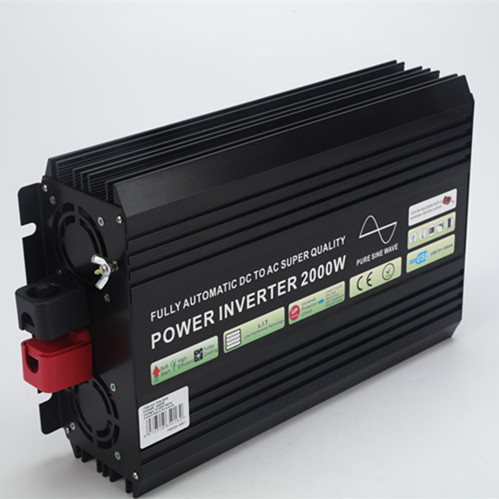

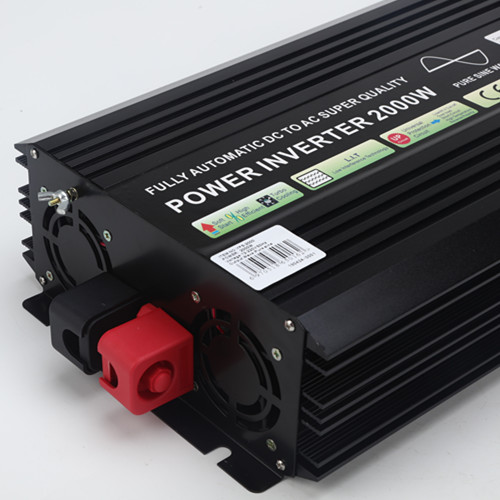

2000W Pure Sine Wave Power Inverter

pure wave
power inverter
DC-AC
transformer
Product description: Dedicated design for the use of Solar Power Energy. Pure Sine Wave Wireless Remote Control and Wired Remote Control (Optional) Supply USB 5V/500mA High temperature alarm and protection system
INQUIRY

Product Description

Product Name: 2000W Pure Sine Wave Power Inverter

Country of Origin:China

Model: YPS-2000

Color: Silver / Black / Blue

Continue Power: 2000 W
Max. Output Surge: 4000W
DCInput Voltage: 12V or 24V or 36v or 48V
AC Output Voltage: 100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected

Dimensions (mm): (320+33) x 217 x 88
Weight (kg) :5.3 kg

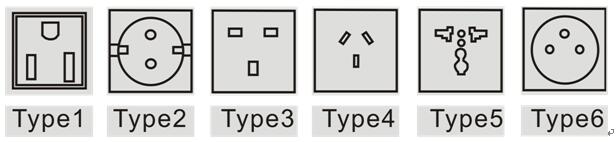

‧Output type:

Wired Remote Control Wireless Remote Control :

‧Features :

l Dedicated design for the use of Solar Power Energy.

l Pure Sine Wave

l Wireless Remote Control and Wired Remote Control (Optional)

l Supply USB 5V/500mA

l High temperature alarm and protection system

l Output overloaded alarm and protection system

l Output short circuit alarm and protection system

l High surge capacity for starting demanding loads

l Alarm and protection for low / high battery

‧Scope of Application :

Medical Instruments, Emergency Power, Oxygen Concentrators, Cash Register, Home Theater, High-end Stereos, Notebook, Computers, Power Tools, Radios, DVD players, TV's , Musical Instruments, Recording Equipments, Limousines, Buses, RV's, Precision Equipment, Sensitive Radio Equipment, Laser Printers, Fax Machines, etc.
USB 5V DC output is for Digital Camera, Cell Phone, Video Game, MP3, MP4, PDA.

‧YPS-2000 Specifications:

Model		YPS-2000-12	YPS-2000-24	YPS-2000-36	YPS-2000-48
Output	Continuous output	2000W
	Surge Power	4000W
	AC Voltage	100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
	Regulation	Vrms ± 3%
	Frequency	50Hz or 60Hz
	Wave Form	Pure Sine Wave
	Total Harmonic Distortion	THD ＜ 3%
	USB Output	DC 5V ± 5% 500mA
Input	Battery Voltage	12V	24V	36V	48V
	DC Current (typ.)	200A	100A	67A	50A
	LowBatteryAlarm	10.5V ± 2%	21V ± 2%	31.5V ± 2%	42V ± 2%
	Battery Voltage Low Stop	10V ± 2%	20V ± 2%	30V ± 2%	40V ± 2%
	HighBattery	16V ± 2%	32V ± 2%	48V ± 2%	64V ± 2%
	No load current	1100mA	600mA	370mA	280mA
	Efficiency	＞ 92%
Protection	High temperature	Yes
	Short-circuit	Yes
	Overload	Yes
	Input Voltage	Yes
Intelligent Design Heat Auto Control		Fan Start : 42℃ ± 3 , Fan Stop : 38℃± 3
		High Temperature Shut Down : 63℃±3 , Restart Output : 55℃±3
Indicator		Normally : Green LED Over Temperature : Yellow LED Exceptionally : Red LED
Others		Optional with wireless remote control or without remote control
Mechanical	Dimensions (mm)	320+33 (D) x 217 (W) x 88 (H)
	Weight	5.3 kgs
