Product Description

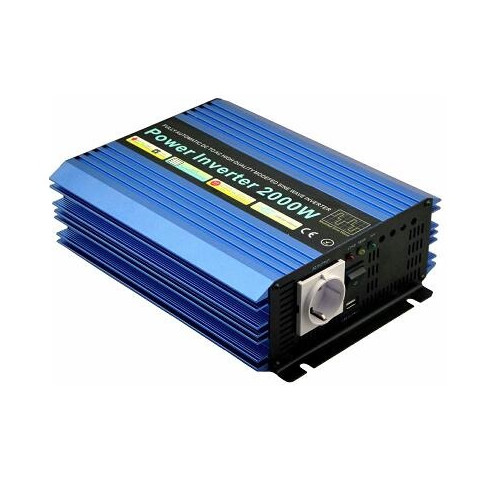

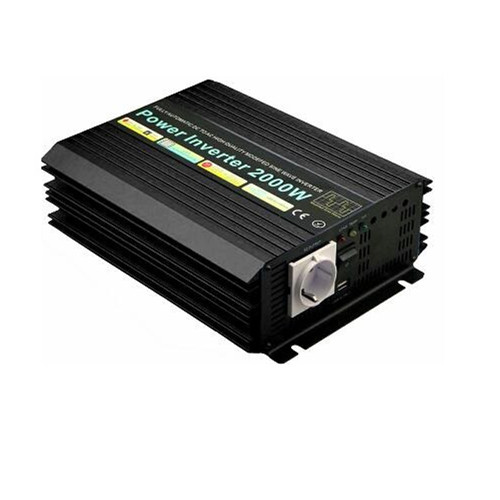

Product Name: 2000W Modified sine wave power inverter
Model: YP-2000M
Color: Black / Blue
Detail Specifications
Continue Power: 2000 W
Max. Output Surge:4000W
DCInput Voltage: 12V or 24V or 36v or 48V
AC Output Voltage: 100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
Diamensions(mm): (260+33) x 217 x 88
Weight (kg) : 4.6 kgs
|

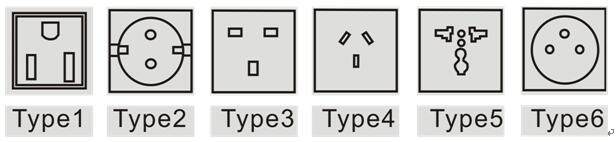

‧Output Receptacles: |
|
|
|
‧Features : |
· Digital microprocessor design
· Short circuit alarm and protection
· Overload alarm and protection
· Reverse polarity protection
· Intelligent over temperature alarm and shutdown
· High and low battery voltage alarm and shutdown
· Intelligent disperses heat system
· High surge capacity for starting demanding loads
· Stable output voltage and frequency
· Low no load current draw
· Advanced SMT technology
· Modified Sine Wave output
|
‧Scope of Application : |
Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.
|
‧YPM-2000 Specifications: |
|
Model |
YPM-2000-12 |
YPM-2000-24 |
||||
|
Output |
Continuous output |
2000W |
||||
|
Surge Power |
4000W |
|||||
|
Voltage |
100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V to be selected |
|||||
|
Regulation |
Vrms ± 8% |
|||||
|
Frequency |
50Hz or 60Hz ± 1% |
|||||
|
Wave Form |
Modified Sine Wave |
|||||
|
Input |
Voltage |
12V |
24V |
|||
|
LowBattery |
10.5V ± 0.3V Alarm |
21V ± 0.4V Alarm |
||||
|
HighBattery |
Over 16V alarm sounds and shutdown |
Over 32V alarm sounds and shutdown |
||||
|
No load current(A) |
1.5 amp |
0.8A |
||||
|
Efficiency |
Over 90% |
|||||
|
Protection |
High temperature |
|
||||
|
Short-circuit |
Yes |
|||||
|
Overload |
Yes |
|||||
|
Cooling Fan |
＞43℃ cooling fan turns on |
|||||
|
Indicator |
Audio Sound |
bi (high temperature) bi—(Batteryover voltage shutdown)
bi-bi—(low battery shutdown) |
||||
|
Visual |
Normally : Green LED Over Temperature : Yellow LED Exceptionally : Red LED |
|||||
|
Mechanical |
Dimensions (mm) |
260+33 (D) x 217 (W) x 88 (H) |
||||
|
Weight |
4.6 kgs |
|||||
