TND&TNS voltage regulator

single phase
voltage regulator
voltage stabilizer
home appliance
Product description: TND and TNS series single phase and three phase voltage stabilizer is developed on the basis of SVC, it not only bears all characteristics of SVC, but also have advantages of elegant appearance, luxur
INQUIRY

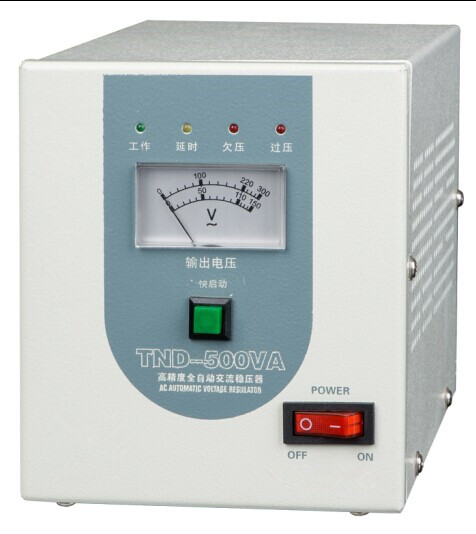

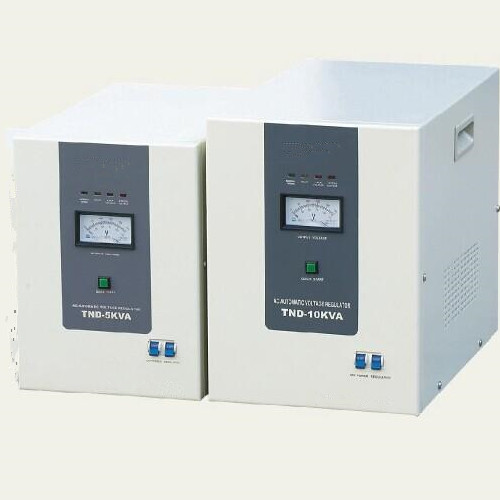

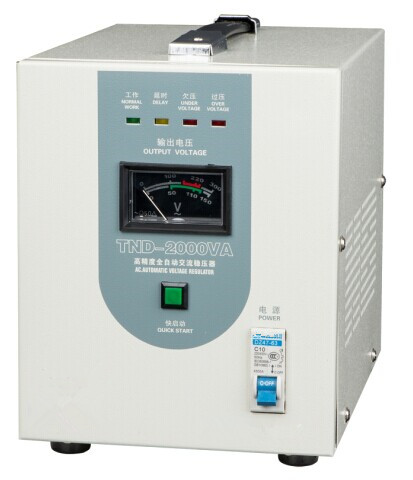

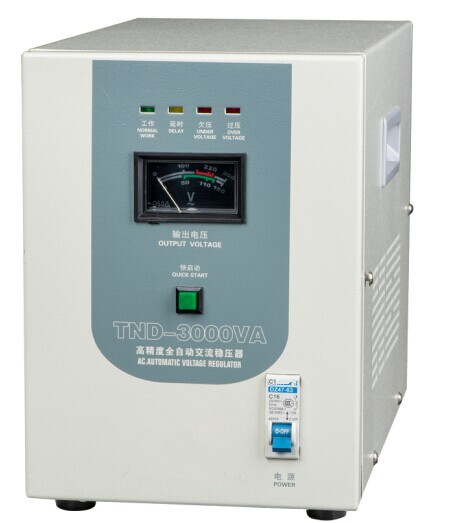

TND and TNS series single phase and three phase voltage stabilizer is developed on the basis of SVC, it not only bears all characteristics of SVC, but also have advantages of elegant appearance, luxury, economical and practical, etc.

For office equipment, test equipment, industrial automatic equipment, household appliance, light system, etc

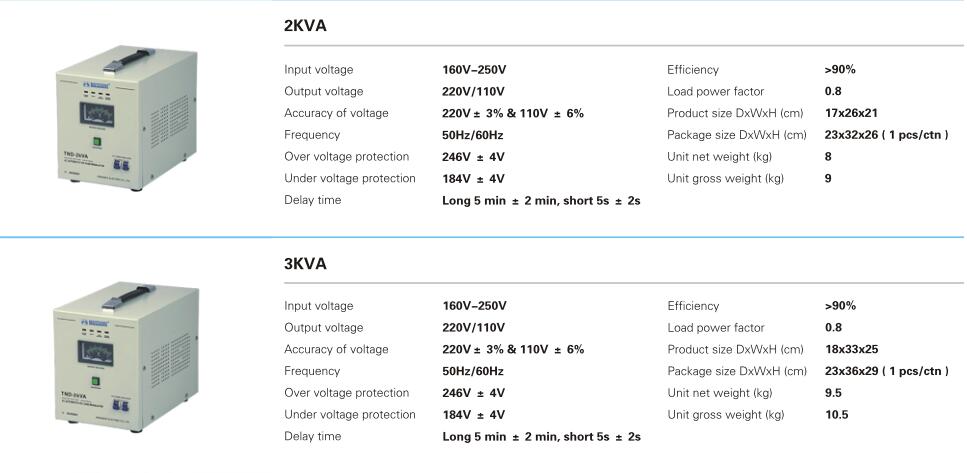

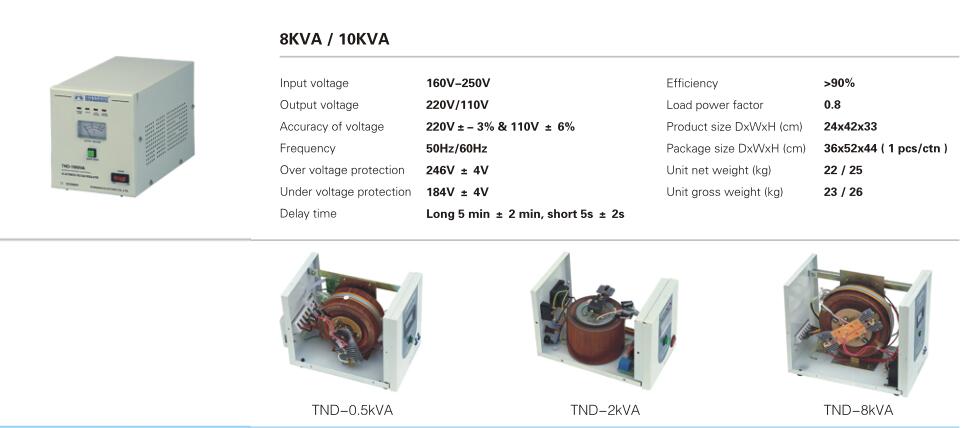

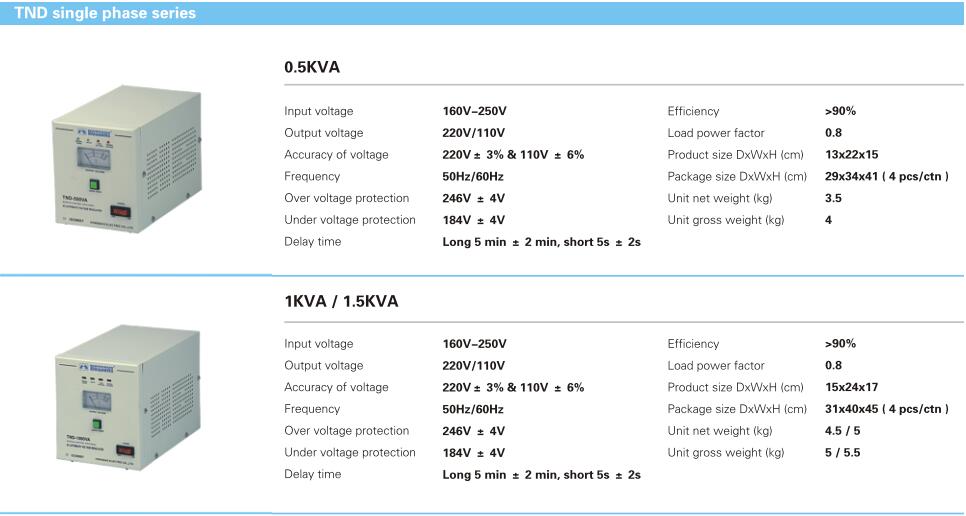

Single phase input voltage	140V-250VAC	Frequency	50/60Hz
Single phase output voltage	0.5K-3KVA 220V&110V 5K-60KVA 220VAC	Adjustable time	＜1s
Three phases input voltage	Phase voltage 160-250V Wire voltage 277-430V	Waveform distortion	No additional distortion
Three phase output voltage	Phase voltage 220V Wire voltage 380V	Load power factor	0.8
Three phase output voltage	Phase voltage 220V Wire voltage 380V	Dielectric strength	1500V/1min
