SVC single&three phase voltage regulator

voltage stabilizer
voltage regulator
single phase
SVC
Product description: SVC single phase and three phases high accuracy full automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control cir
INQUIRY

SVC single phase and three phases high accuracy full automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. when the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then the output voltage will be adjusted to rated value and get a steady state.

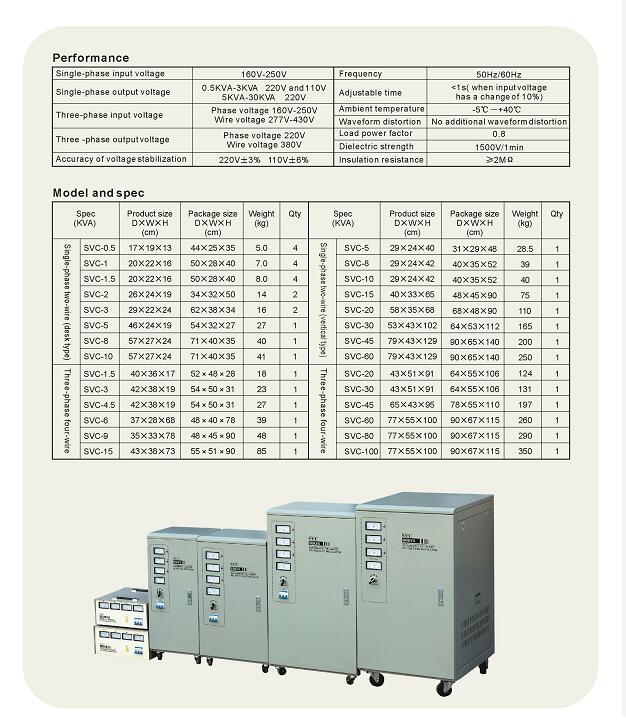

Single phase input voltage	140V-250VAC	Frequency	50/60Hz
Single phase output voltage	0.5K-3KVA 220V&110V 5K-60KVA 220VAC	Adjustable time	＜1s
Three phases input voltage	Phase voltage 160-250V Wire voltage 277-430V	Waveform distortion	No additional distortion
Three phase output voltage	Phase voltage 220V Wire voltage 380V	Load power factor	0.8
Three phase output voltage	Phase voltage 220V Wire voltage 380V	Dielectric strength	1500V/1min
