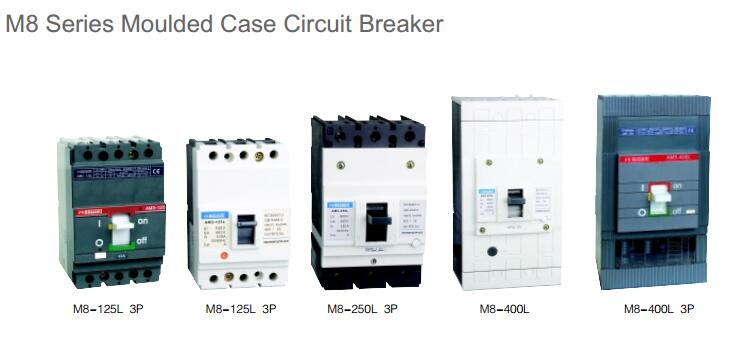

M8 series MCCB Mould Case Circuit Breaker

M8 series MCCB Mould Case Circuit Breaker

M8
MCCB
circuit breaker
AC750V
Product description: M8 series of moulded case circuit breaker is one of our new type breakers which adopted international advanced design, manufacture technology to develop, the rated insulating voltage is 750V, suitabl
INQUIRY

M8 series of moulded case circuit breaker is one of our new type breakers which adopted international advanced design, manufacture technology to develop, the rated insulating voltage is 750V, suitable for AC50Hz(60Hz), rated working voltage 690V, or below, rated working current is 16 to 1250A of circuit and used in distributing electric energy. Infrequent making and breaking in the normal conductions and protecting when circuit and are overload, short circuit and under voltage. Toted shell-rack and the breaker which current is under 400A, take protect effect when mouse cage motor is infrequent start, breaking off working and protecting overloads shirt circuit and under voltage.
